Optimizing Solar Energy: Series or Parallel Connections to Enhance Your Energy Solution


The Power of Multiple Solar Panel Connections

Harnessing solar energy is an effective method for generating renewable energy. Connecting multiple solar panels, either in series or in parallel, can significantly enhance the efficiency and adaptability of a solar power system.

Series connections are beneficial when higher voltage is required, as they add the voltage of each panel while maintaining the same current. This is ideal for systems requiring a high input voltage. On the other hand, parallel connections are advantageous when higher current is needed.

In parallel, the current of each panel adds up while the voltage remains constant, ideal for systems with a high current input requirement. Both methods have distinct benefits, tailoring to different energy needs and maximizing the utility of solar panels.



For example, connecting ALLPOWERS R1500 Power Station with SF200 Solar Panels

Let's discuss optimizing the ALLPOWERS R1500 Power Station, which supports a solar input of 12-60V and maximum current of 13A.
The SF200 panels have the following specifications:
- Open Circuit Voltage: 38.4V
- Short Circuit Current: 6.87A
- Maximum Power Voltage: 32V
- Maximum Power Current: 6.25A

A. Determining the Connection Type

The choice between series and parallel connections depends on the power station’s input requirements and the panel’s specifications.
- **Series Connection**: Connecting two SF200 panels in series would yield a voltage of 64V, surpassing the R1500's 60V limit. Therefore, a series connection is not suitable in this case.
- **Parallel Connection**: Connecting the panels in parallel is optimal. Two panels would generate a combined current of 12.5A, which is within the R1500’s 13A limit, and maintain a voltage of 32V, well within the 12-60V range.

B. Maximum Panel Connection and Required Accessories

Maximum Panels in Parallel: You can connect up to two SF200 panels in parallel without exceeding the R1500’s voltage and current specifications.
-Cables and Connectors: For parallel connections, use MC4 Y connectors for linking the panels. Ensure the cables are rated for at least 15A to handle the combined current safely.


C. Precautions During Connection

1. Safety First: Always turn off the power station and ensure the panels are not exposed to direct sunlight while making connections.

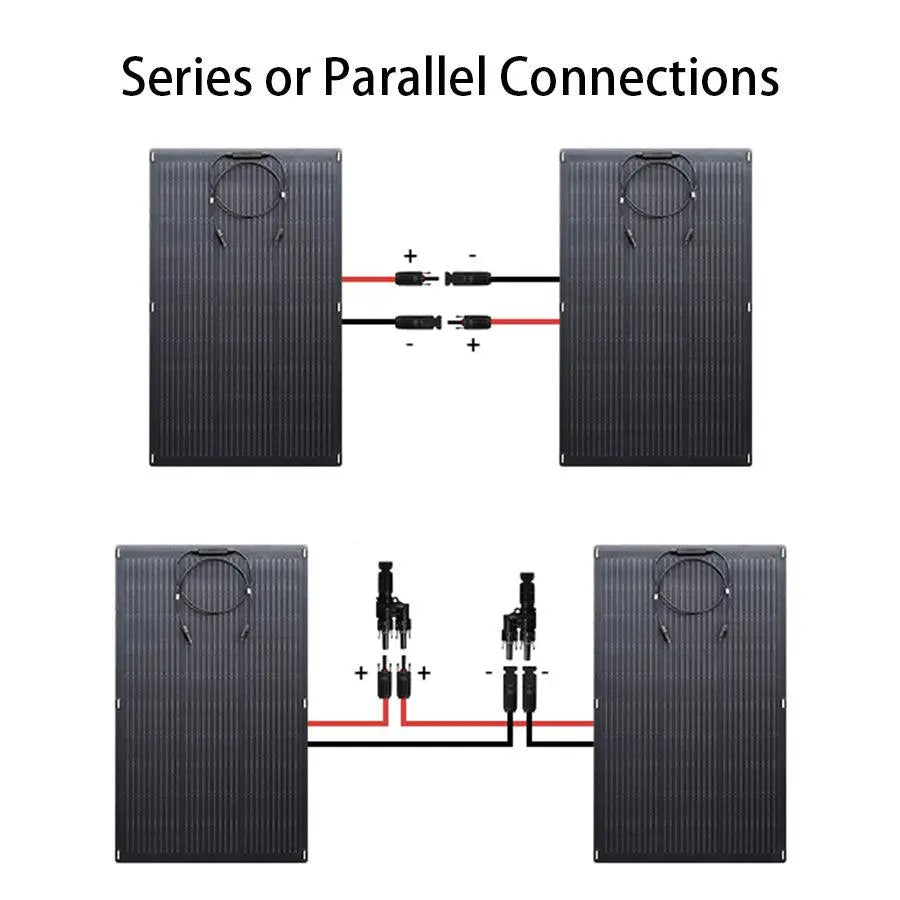

2. Parallel Connection Steps:
Connect the positive terminals of both SF200 panels with an MC4 Y connector, and repeat the same for the negative terminals.
Connect the combined positive and negative leads to the R1500’s solar input.
3. Check and Test: Once connected, expose the panels to sunlight and monitor the R1500 to ensure the input is within the specified range.


By understanding the benefits of series and parallel connections and considering the specific requirements of your solar panels and power station, you can optimize your solar energy setup. With the right connection strategy, the ALLPOWERS R1500 and SF200 panels can work efficiently together, providing a robust and adaptable renewable energy solution.
